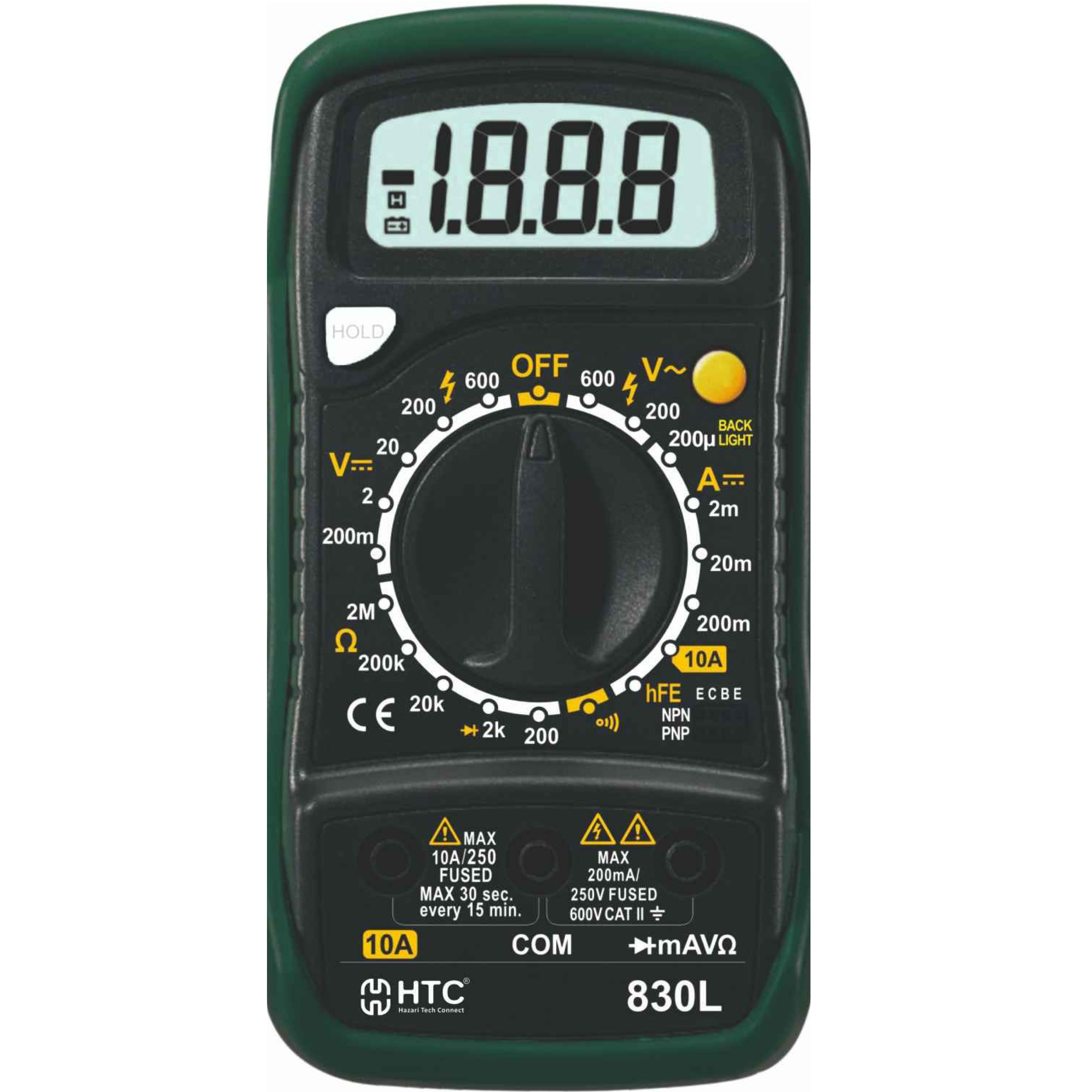

DM-830L Digital Multimeter
₹960.00 ₹960.00
MRP Inclusive of all taxes
Product Description
3½ Digits Manual Multimeter, hFE Test, Overload Protection, AC/DC Voltage
Application
- Electrical and Power Industry
- Electronics and Manufacturing
- Automotive
- Telecommunications
- Renewable Energy
- Industrial Automation
- Education and Projects
- Residence

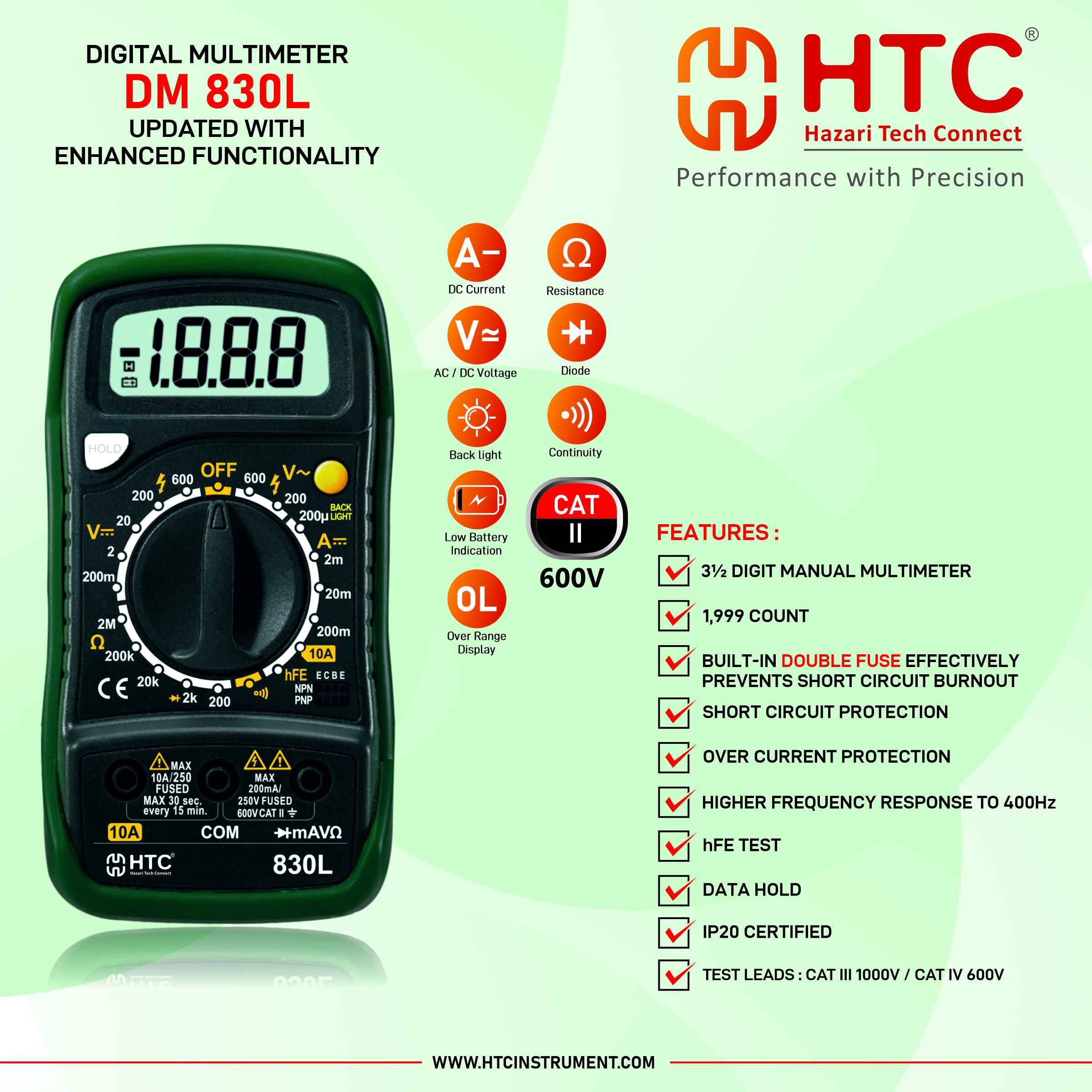

Features
- 3½ DIGIT MANUAL MULTIMETER

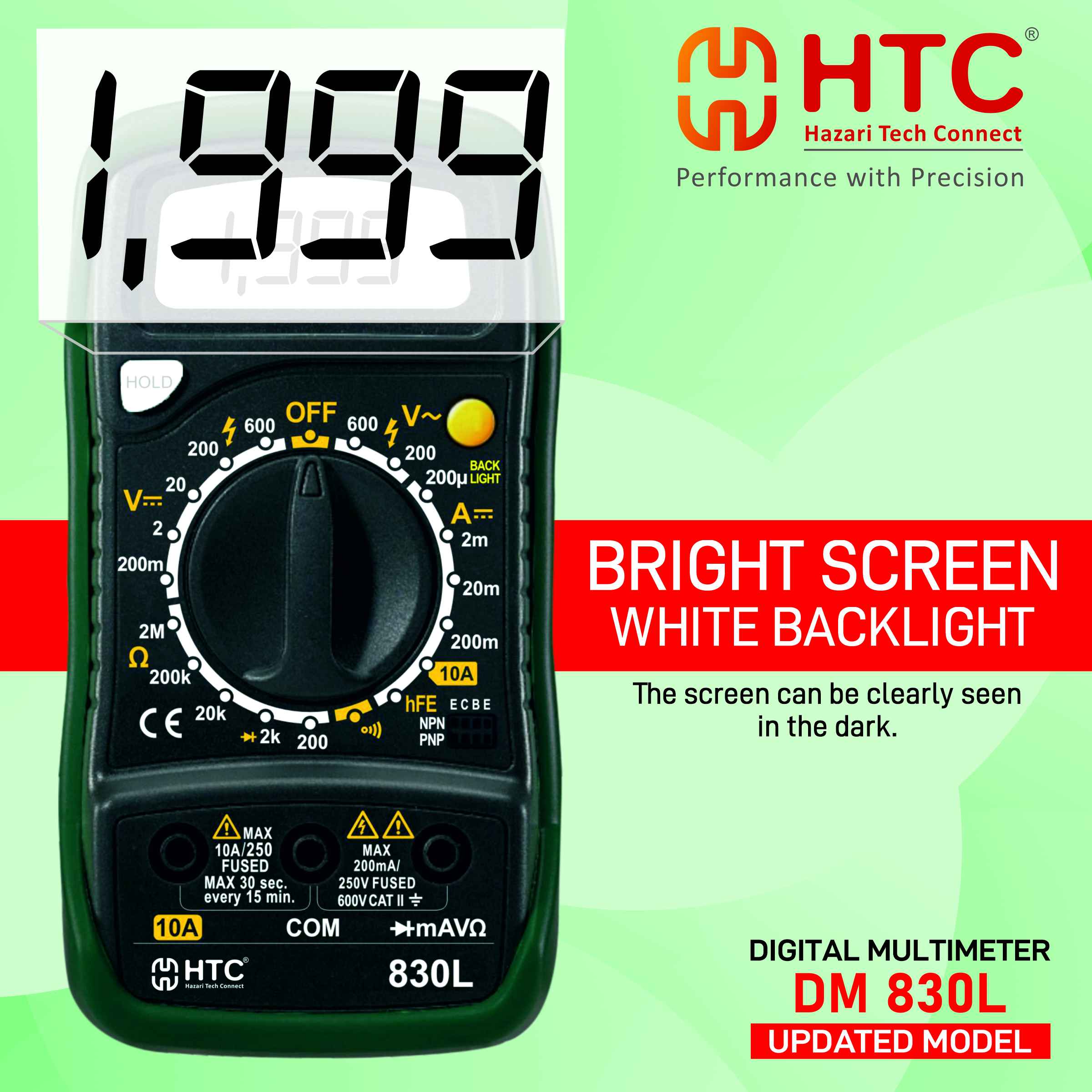

- 1,999 COUNT

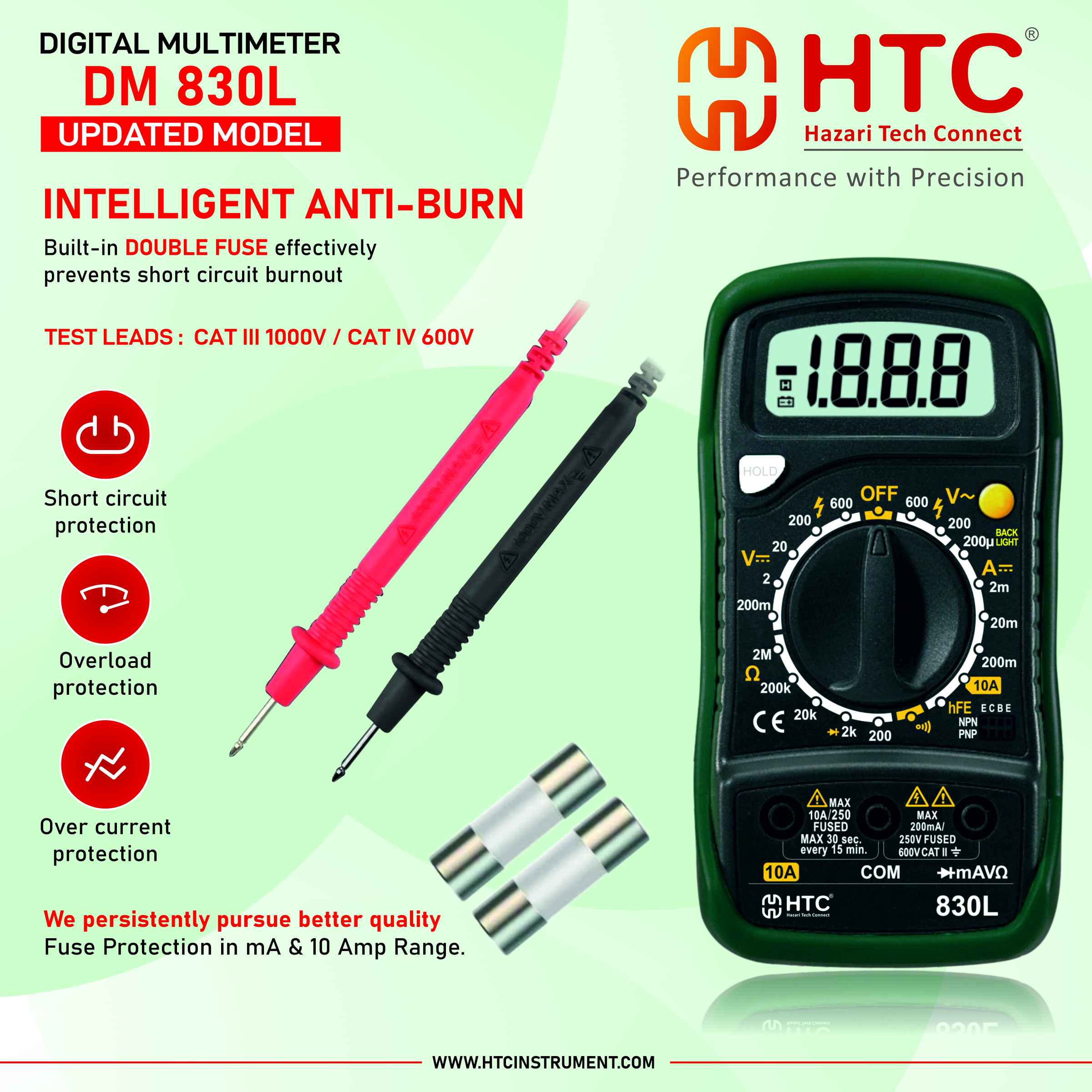

- BUILT-IN DOUBLE FUSE EFFECTIVELY PREVENTS SHORT CIRCUIT BURNOUT
- SHORT CIRCUIT PROTECTION
- OVER CURRENT PROTECTION
- HIGHER FREQUENCY RESPONSE TO 400Hz
- hFE TEST
- DATA HOLD
- IP20 CERTIFIED
- Download User Manual
- Download Catalogue
- Download Software
Product Description
DC VOLTAGE
| RANGE | RESOLUTION | ACCURACY |
|---|---|---|
| 200mV | 100µV | ±0.5% of rdg ±3 digits |
| 2V | 1mV | |
| 20V | 10mV | |
| 200V | 100mV | |
| 600V | 1V | ±0.8% of rdg ±5 digits |
AC VOLTAGE
| RANGE | RESOLUTION | ACCURACY |
|---|---|---|
| 200V | 100mV | ±1.2% of rdg ±10 digits |
| 600V | 1V |
DC CURRENT
| RANGE | RESOLUTION | ACCURACY |
|---|---|---|
| 20µA | 0.01µA | ±1% of rdg ±3 digits |
| 200µA | 0.1µA | |
| 2mA | 1µA | |
| 20mA | 10µA | ±1.0% of rdg ±5 digits |
| 200mA | 100µA | ±1.5% of rdg ±5 digits |
| 10A | 10mA | ±3% of rdg ±10 digits |
RESISTANCE
| RANGE | RESOLUTION | ACCURACY |
|---|---|---|
| 200Ω | 0.1Ω | ±0.8% of rdg ±5 digits |
| 2kΩ | 1Ω | ±0.8% of rdg ±2 digits |
| 20kΩ | 10Ω | |
| 200kΩ | 100Ω | |
| 2MΩ | 1kΩ | ±1.0% of rdg ±5 digits |
Maximum open circuit voltage : 3.2V
Overload protection : 250V DC or RMS. AC
TRANSISTOR hFE TEST (0–1000)
| RANGE | TEST RANGE | TEST CURRENT | TEST VOLTAGE |
|---|---|---|---|
| NPN & PNP | 0~1000 | LB≅10µA | VCE≅3V |
POWER : 9V (6F22) x 1
| Dimension | H144 x W74 x D40 mm |
| Weight | Approx. 250 Gms. |

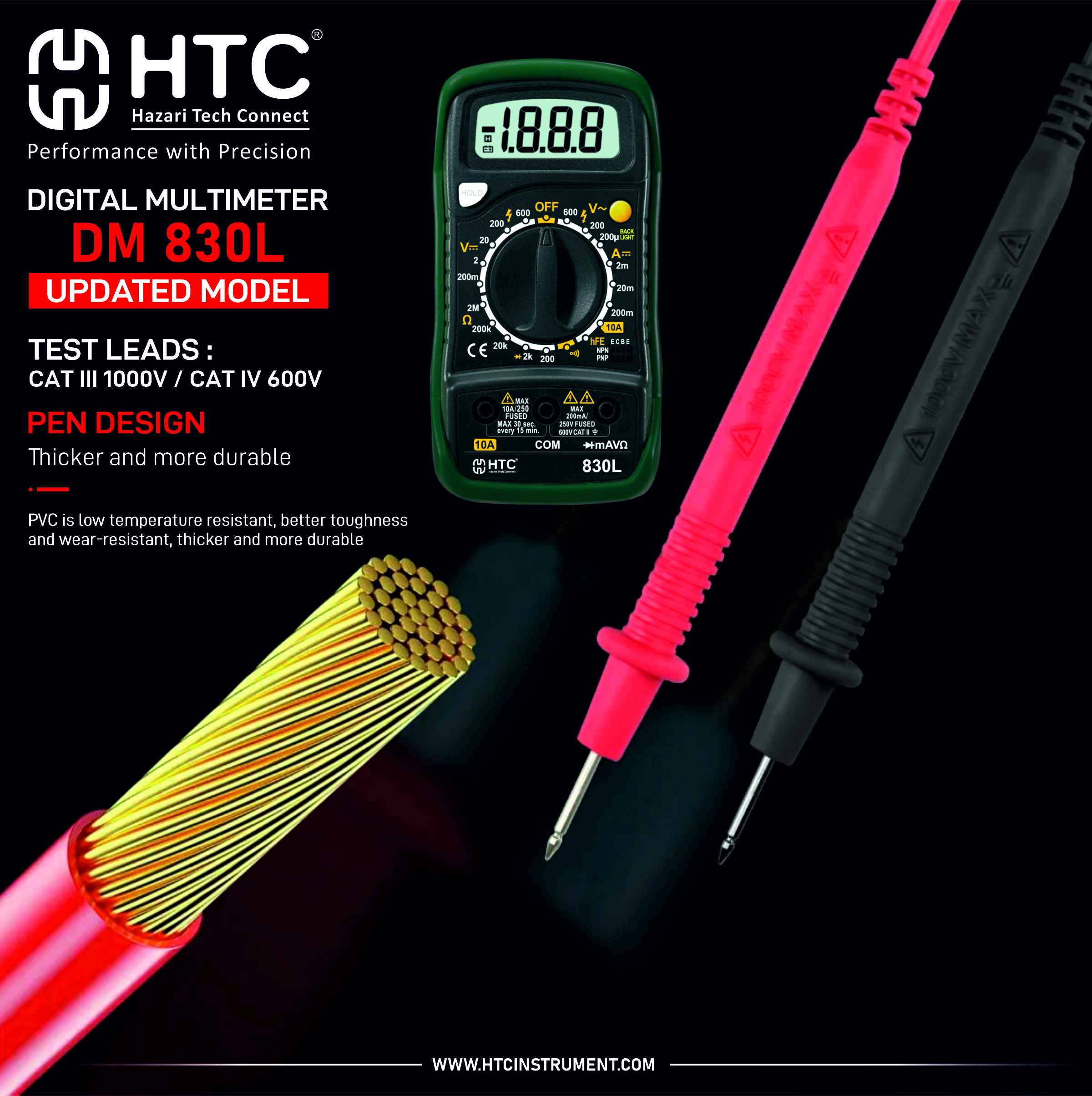

| Accessories | Test leads, User Manual & Battery. |
| Qty | 40 Pcs. in a Box. |
